34  Supraventricular Tachycardia (SVT)

• SVT is a “grab bag” term for tachyarrhythmias originating “above the ventricle”

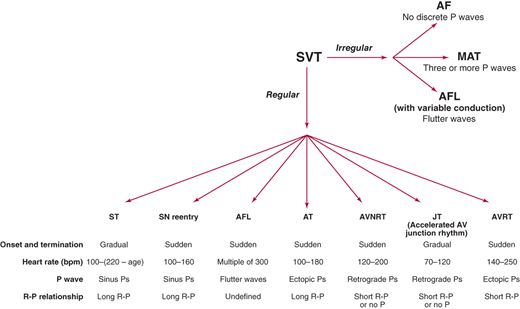

Different types of supraventricular tachyarrhythmias.

This is the best explanation of SVT I’ve ever seen ⬇️

Via (PatologCritica?) h/t (Innov_Medicine?) #MedTwitter pic.twitter.com/52RWVcE3uY

— Avraham Z. Cooper, MD ((AvrahamCooperMD?)) August 6, 2022

34.1 Irregular tachycardias (narrow complex)

• Multifocal atrial tachycardia (MAT) (Figure Figure 34.1 A)
• atrial flutter with “variable conduction” (Figure Figure 34.1 B)
• atrial fibrillation (Figure Figure 34.1 C)
  • For more information, see Chapter 30

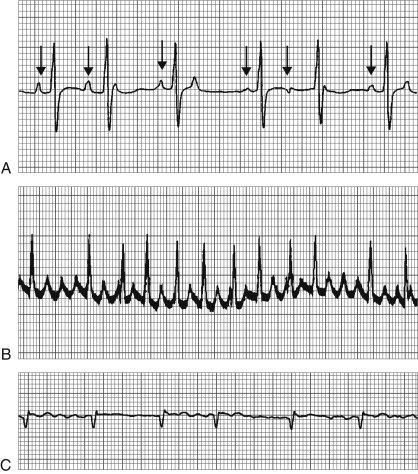

Figure 34.1: The types of narrow complex irregular tachyarrhythmias: (A) MAT, (B) AFlutter with variable conduction, and (C) AFib.

34.2 Regular tachycardias

• TODO
